ABS Sensor X max & Oscilloscope

Posted November 30, 20168 yr

Hello,

I am trying to visualize ABS sensor data with oscilloscope but I have no idea about how to proceed.

I have visited maybe 5 forums asking the service manual of the yamaha X max ABS but it seems nobody has it or want give it. So I have no information about ABS sensor and wiring diagram.

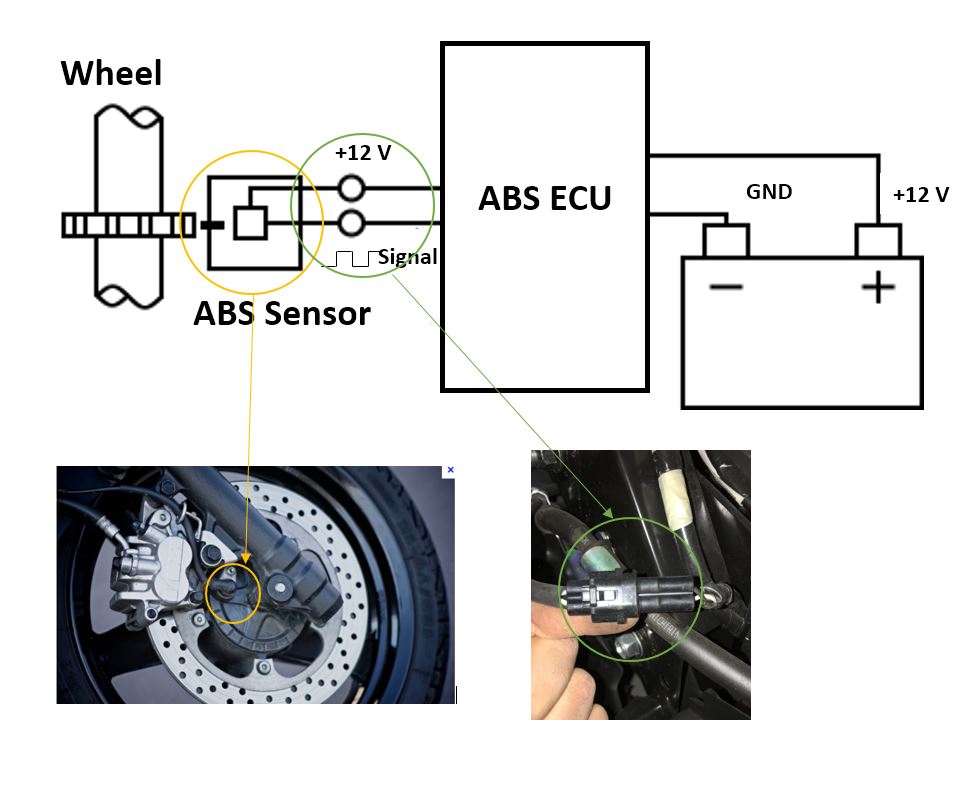

All what I know is summurized in the attached image. It is a 2 wires sensor, one of the wire is supplied with a 12 V voltage and the other one is the signal by deduction.

I am thinking to deconnect the connector that you can see on the picture, identify the 12 V pin of the sensor and wire it to the battery 12 V with a fuse. Then I am totally lost.....

I hope someone could help me.

Thank you in advance,
Pm
