Azza87 Posted February 14, 2016 Share Posted February 14, 2016 Hi all, following on from my last post about my electrics, I've now found out that I need to re-wire the stator plate, CDI, regulator/rectifier and ignition coil together. Any advice would be greatly appreciated. thanks in advance Aaron Link to comment Share on other sites More sharing options...
neversaydie Posted February 14, 2016 Share Posted February 14, 2016 Then youll require the electrical schematic for whatever bike it is that you have. Google it Link to comment Share on other sites More sharing options...
Azza87 Posted February 14, 2016 Author Share Posted February 14, 2016 I googled it for DTR125 and copied it all into 2 A3 sheets of paper (took a few days haha) but I just don't understand it or where to start. ive googled for hours so hoped I could get some advice from the experts Aaron Link to comment Share on other sites More sharing options...
neversaydie Posted February 15, 2016 Share Posted February 15, 2016 (edited) Have you got a complete wiring loom for the bike, or are you starting from scratch? I see from one of your previous posts that you have the Haynes for the bike. There is usually a full electrical schematic at the back Edited February 15, 2016 by neversaydie additional info 1 Link to comment Share on other sites More sharing options...
Moderator Cynic Posted February 15, 2016 Moderator Share Posted February 15, 2016 I can read them easily. Thats 4 years of technical college for you. If you have no idea then you will do better buying a loom. Even an old dirty one to dissasemble. Then you can build up just what you need. Explaining wiring looms on a forum will be nigh impossible to a standard where you can build one, if you really are struggling with electics pulling some looms apart will help a lot. 1 Link to comment Share on other sites More sharing options...
Azza87 Posted February 15, 2016 Author Share Posted February 15, 2016 Ok I'll start from the top I bought the bike last year in pieces off a freind. I had to buy radiator and bracket, frame, suspension linkage and had to get Yamaha to put bearings in £130 and pegs gear shifter and other bling you bits I spent all Christmas putting it together and looks great so the loom was in bits so looked at a post on here by a guy called 'vez' and said you only need the basic things so decided to try and build one my self not the greatest ideas I've spent hours looking at the diagram and managed to cut the relevant pieces off the loom I think all I need to know is how to join the circuit as such I'm frustrated now weather going to get better pretty soon and want to get out as soon as she's done thanks Aaron Link to comment Share on other sites More sharing options...
blackhat250 Posted February 15, 2016 Share Posted February 15, 2016 Right , av just done my DT 400 & 250, THE 250 WAS POINTS, its now CDI, the crutial circuit to make it run, is the power from soarse coil, [ red/white- brown - black ] these plug into the corisponding 3 prong plug, on CDI .[ COLOURS MAY differ, slightly], now out the other side of CDI. THERE IS Orange- to coil, black/white,- ignition switch, black- earth,. that should get you running, the yellow & white are lights, [ off other coil] lightimg, Link to comment Share on other sites More sharing options...
Azza87 Posted February 15, 2016 Author Share Posted February 15, 2016 Thanks that does sound quite easy actually how do I connect electric start into the equation sorry to be a pain Link to comment Share on other sites More sharing options...

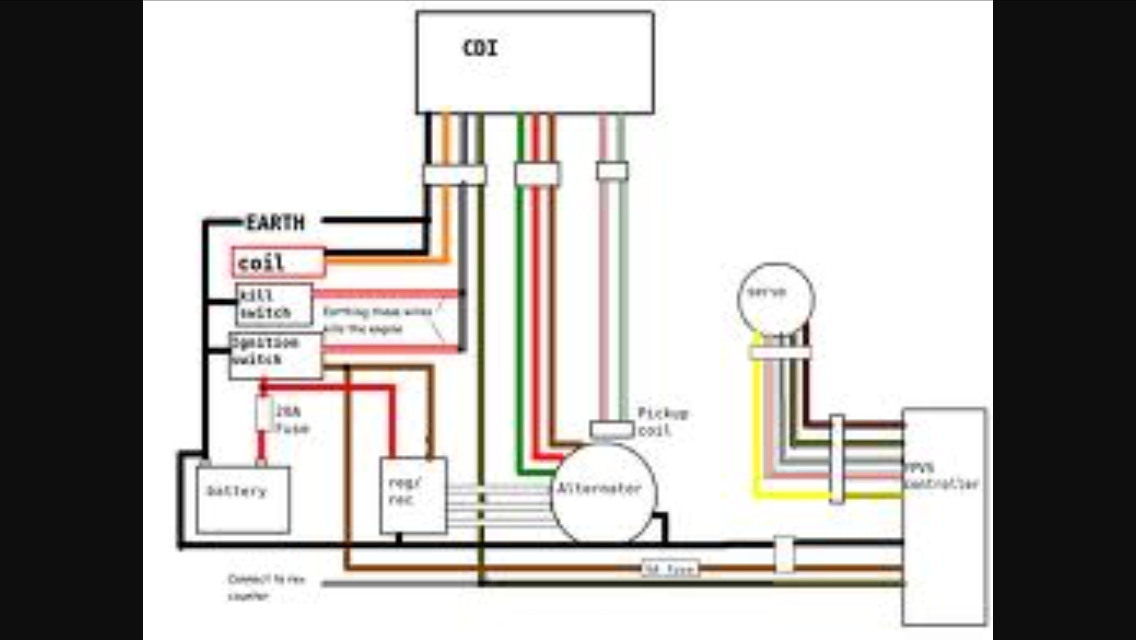

Azza87 Posted February 16, 2016 Author Share Posted February 16, 2016 Does this look right for mine 2004 thanks Link to comment Share on other sites More sharing options...
blackhat250 Posted February 16, 2016 Share Posted February 16, 2016 Yeh , basically the same as my 1976 SET-UP. , starter ? it needs a relay- soliniod- Link to comment Share on other sites More sharing options...
Azza87 Posted February 16, 2016 Author Share Posted February 16, 2016 Oh I have the whole lot of different bits what should it look like Link to comment Share on other sites More sharing options...
blackhat250 Posted February 16, 2016 Share Posted February 16, 2016 Too hard to describe,, take pics of your bits " ,, and post on here, bike bits that is,, 1 Link to comment Share on other sites More sharing options...
Azza87 Posted February 17, 2016 Author Share Posted February 17, 2016 ill go take some pics now thanks Link to comment Share on other sites More sharing options...
Moderator Airhead Posted February 17, 2016 Moderator Share Posted February 17, 2016 It really gets my goat when people don't answer the questions that other forum members who are trying to help have asked, kinda puts people off from any further help, I refer to neversaydie and he asked "Have you got a complete wiring loom for the bike, or are you starting from scratch? " but didn't get an answer!, Clearly you are desperate to get sorted but you should look after people who show an interest better than that I see neversaydie hasn't posted anything since...coincidence do you think? 1 Link to comment Share on other sites More sharing options...
Azza87 Posted February 17, 2016 Author Share Posted February 17, 2016 Sorry I must of missed the post I wouldn't deliberately not answer it wasn't intentional I do have a full loom well I did lol I kind of hacked the bits off that I knew wet defiantly relivant but then someone mentioned a relay and maybe the side stand switch sothough i was doing well but now not so sure apologies again neversaydie Link to comment Share on other sites More sharing options...
