Tfk13 Posted May 28, 2013 Share Posted May 28, 2013 Hi everyone, Just bought a 1977 Yamaha dt 125E (I think...2A6 123cc) as a project bike. The previous owner replaced the wires from the stator but they used solid red color wires and i don't know which is which , it only had a simple kick start wiring, stator - kill switch - coil. I've searched the web for clear pics with no luck. any help or pics would be greatly appreciated. Link to comment Share on other sites More sharing options...
blackhat250 Posted May 28, 2013 Share Posted May 28, 2013 Google "Slimduck " Scemetics,,, www.slimduck.com/ Link to comment Share on other sites More sharing options...
Tfk13 Posted May 29, 2013 Author Share Posted May 29, 2013 Thanks buddy, will have a look and see if i can sort it out. Link to comment Share on other sites More sharing options...
Moderator Airhead Posted May 29, 2013 Moderator Share Posted May 29, 2013 will have a look later Link to comment Share on other sites More sharing options...
Moderator Airhead Posted May 29, 2013 Moderator Share Posted May 29, 2013 you have PM Link to comment Share on other sites More sharing options...
Speedshop Posted June 1, 2013 Share Posted June 1, 2013 if you post a nice clear piture of the stator I might be able to point out all the tails and what they do Link to comment Share on other sites More sharing options...
Tfk13 Posted June 13, 2013 Author Share Posted June 13, 2013 Hey guys, been away for a while. got back home this afternoon and got started on the bike again. Now i found a 12v stator (from an Indian bike i came across while i was away, a TVS Apache, quite a solid bike actually) and replaced the 6v one, got some wires as well and will try and make a simple wiring harness this evening thanks to Airheads 78 DT125E wiring diagram. Hopefully i can get the bike running tomorrow, fingers crossed. will put up pics of the old 6v stator Speedshop and the new ones too. Link to comment Share on other sites More sharing options...

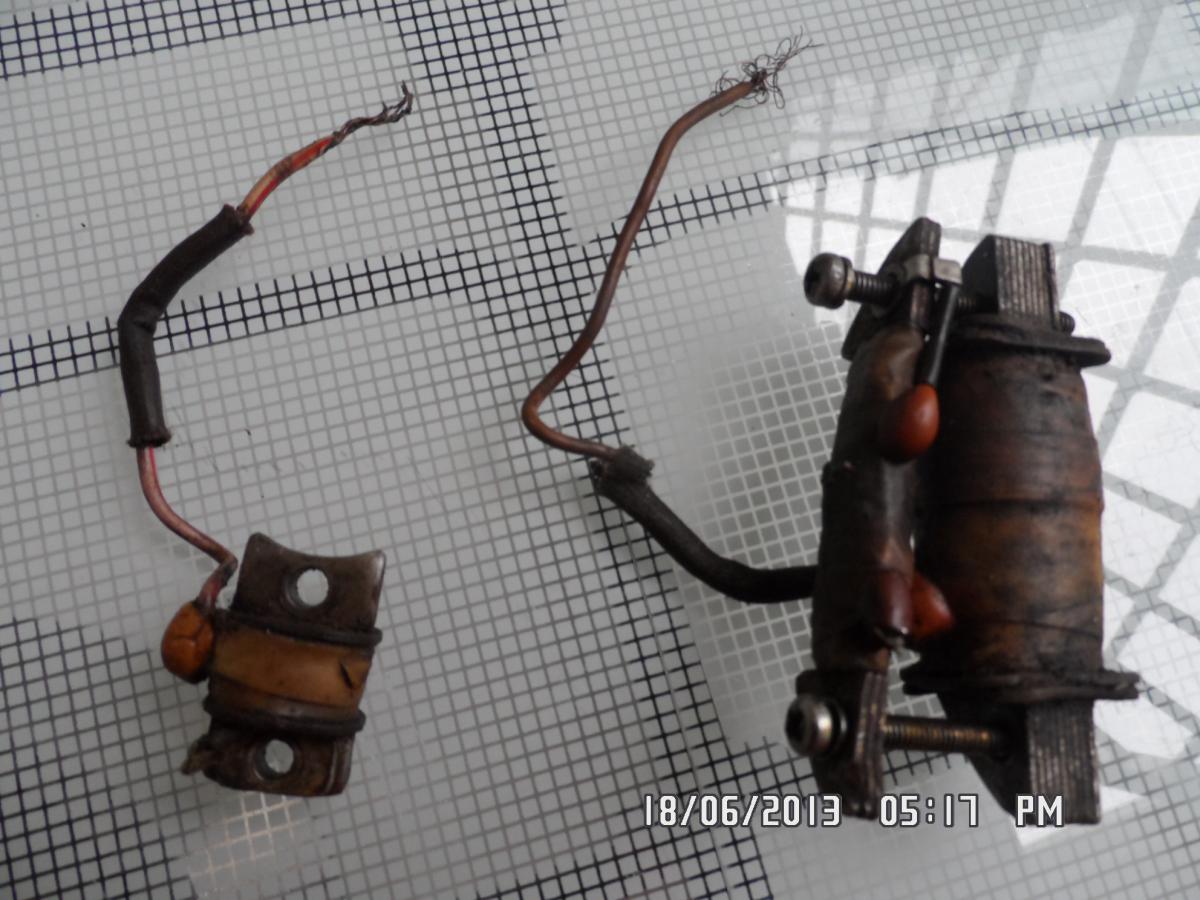

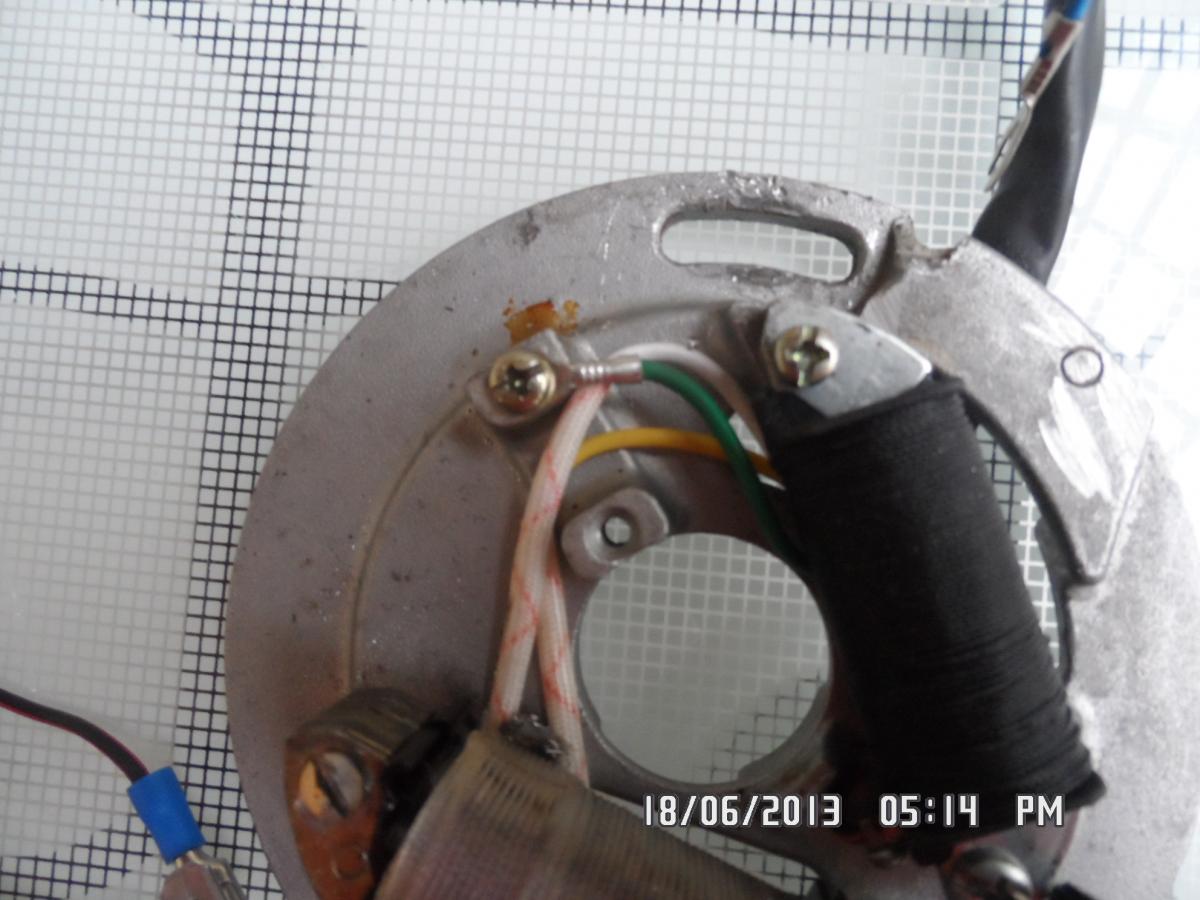

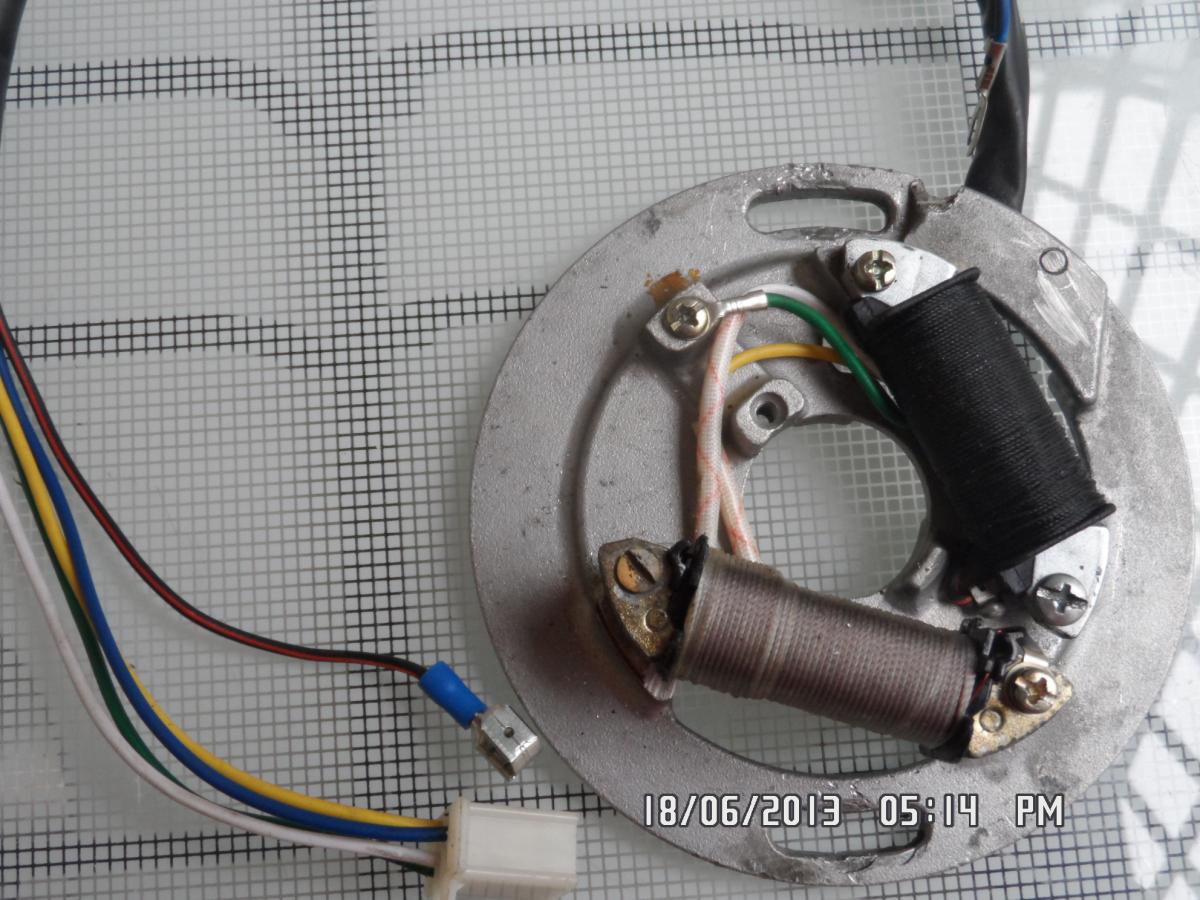

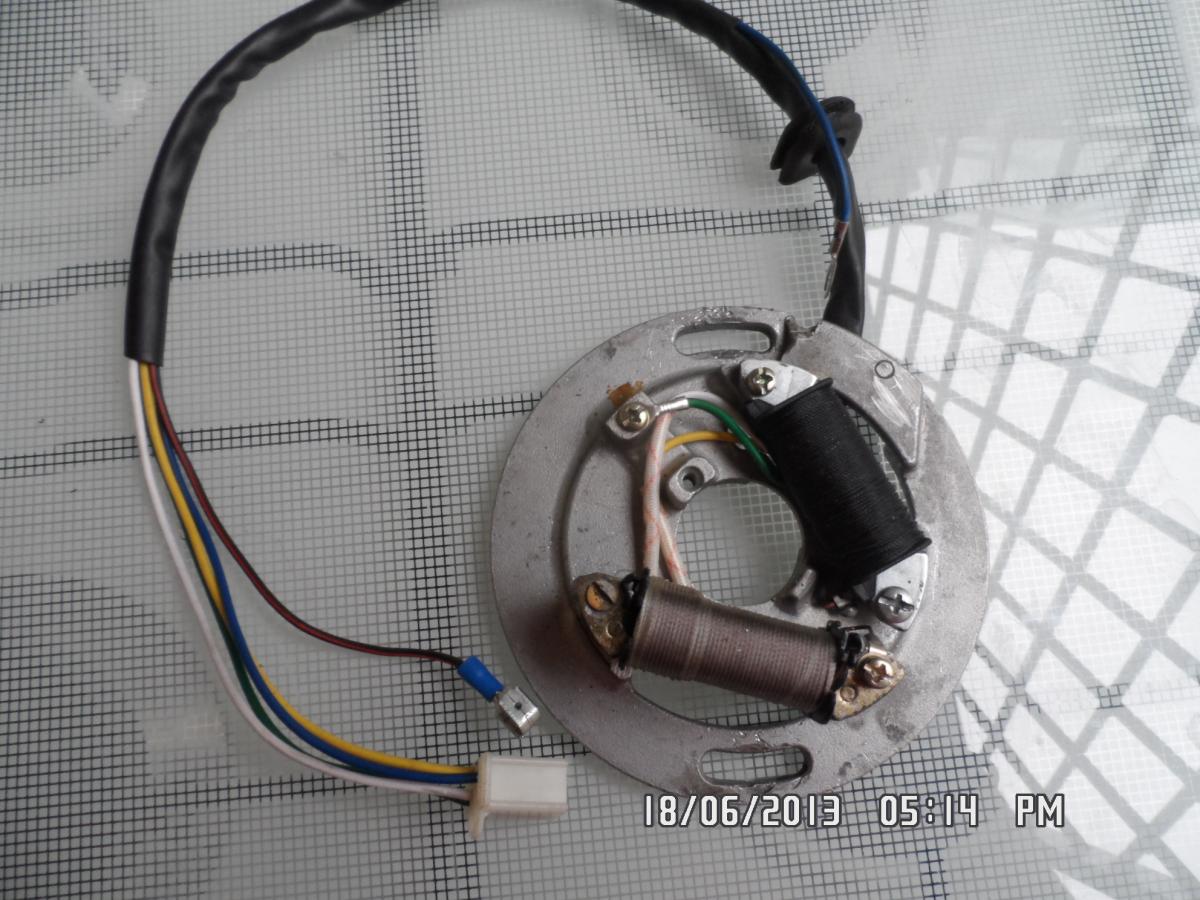

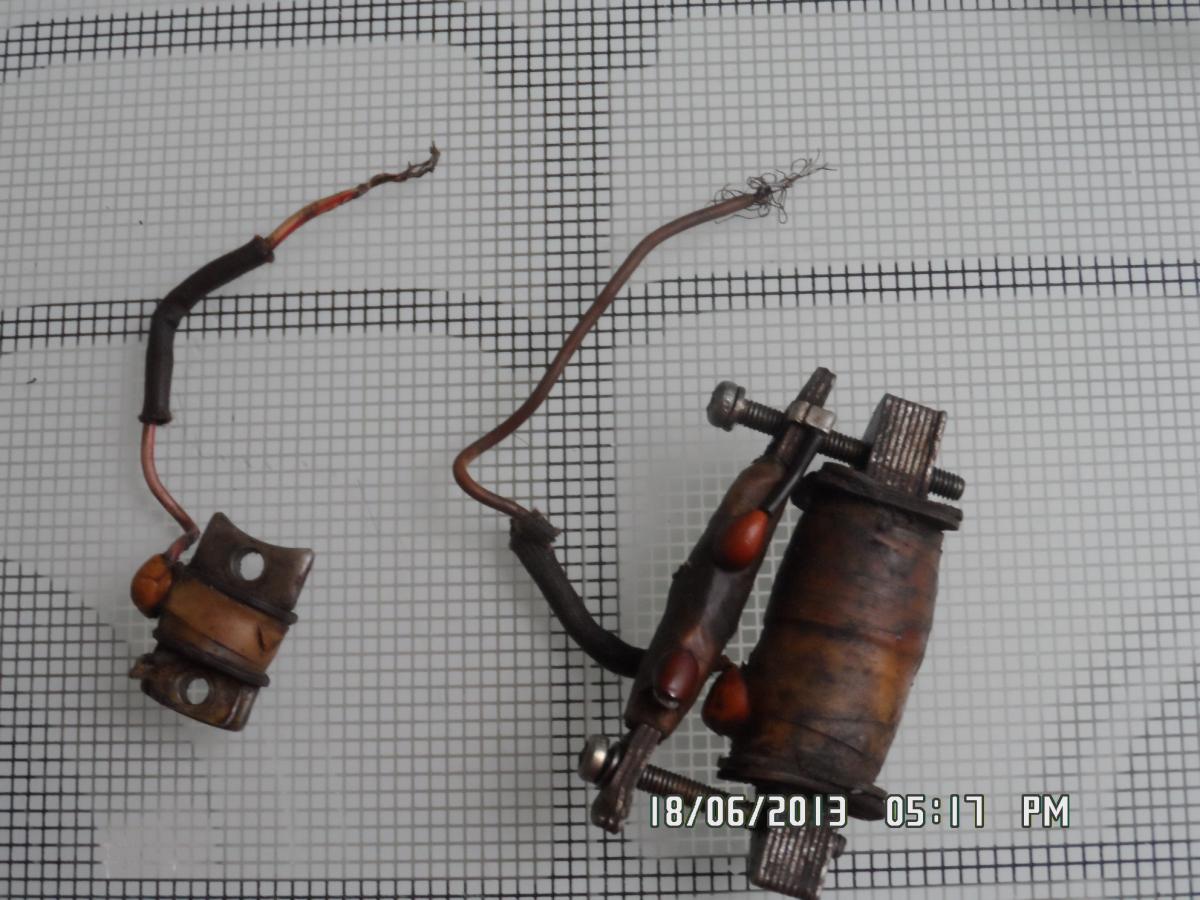

Tfk13 Posted June 19, 2013 Author Share Posted June 19, 2013 Speedshop, here's a couple of pics of the original coils and the new ones. Link to comment Share on other sites More sharing options...
Speedshop Posted June 28, 2013 Share Posted June 28, 2013 I'm sure your wife was out when you took those pictures (on top of the hob......) :-) We can fully recondition the original windings for those who don't want to go making thesesorts of changes Link to comment Share on other sites More sharing options...
